Description

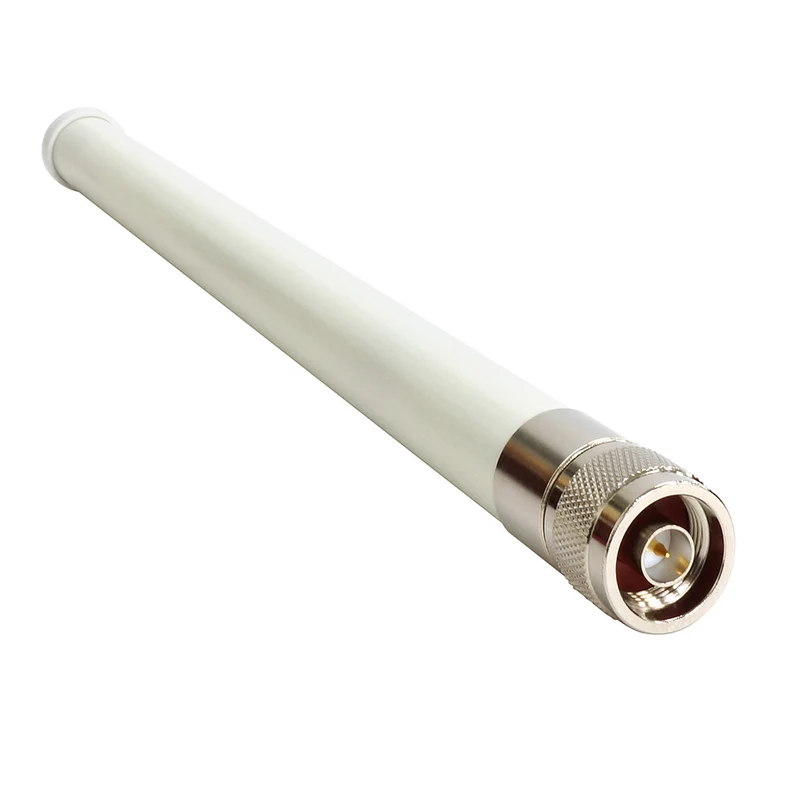

Alfa AOA-2458-79AM is a new high quality, low cost dual band 9/5 dBi gain omni-directional 2.4/5 GHz GHz Wi-Fi antenna with N-male connector. The gain is 9 dBi for 5 GHz and 7 dBi for 2.4 GHz. This unit has weather proof fiber glass casing making it a great antenna for boat or RV use. It does not come with a mounting bracket.

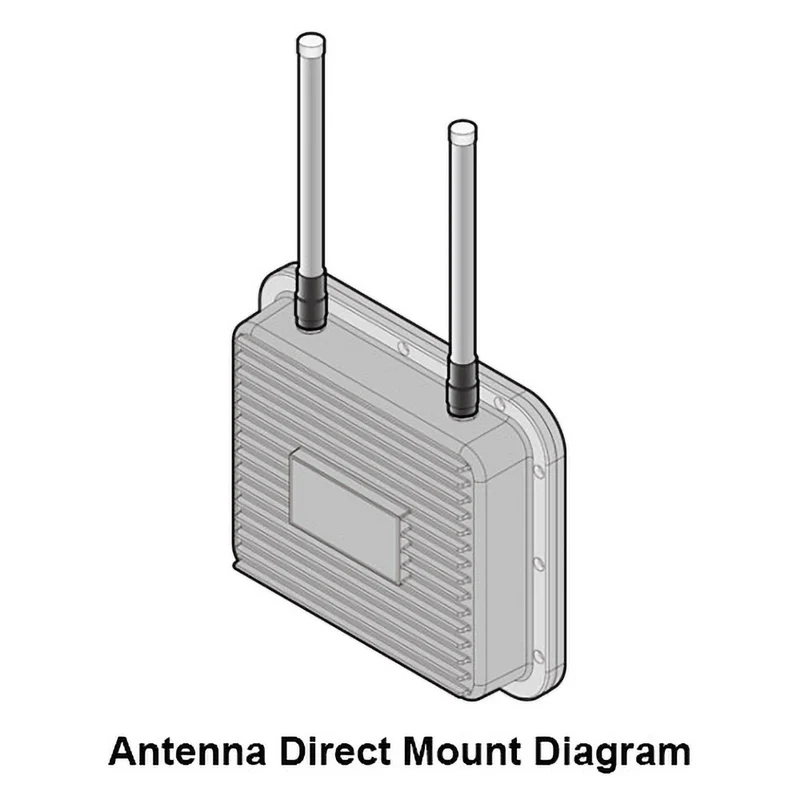

With its N-male connector, the antenna can be connected directly to a variety of outdoor WiFi products that have N-female connectors. Contact our sales team for information about compatible extension cables and pigtails for use with your particular WiFi receiver. This antenna was designed for direct connection to these adapters. While it can be mounted separately and connected to a receiver with an extension cable, this does not include a mounting bracket for the antenna.
More about this item:
- Lightweight fiberglass construction makes installation easy
- Integrated N-Male connector provides fast and easy cable connection
- in IEEE 802.11b/g/n/ac WiFi and Bluetooth applications
- Superior Performance and Weatherproof
Features
* Light weight
* All weather operation
Model:Â AOA-2458-59-TM
Frequency:Â 2.4/5 GHz dual band
VSWR:Â 2.0
Gain: 9 dBi (5 GHz), 7 dBi (2.4 Ghz)
Polarization:Â Vertical
Power Handling:Â 50 Watts
Impedance:Â 50 ohm

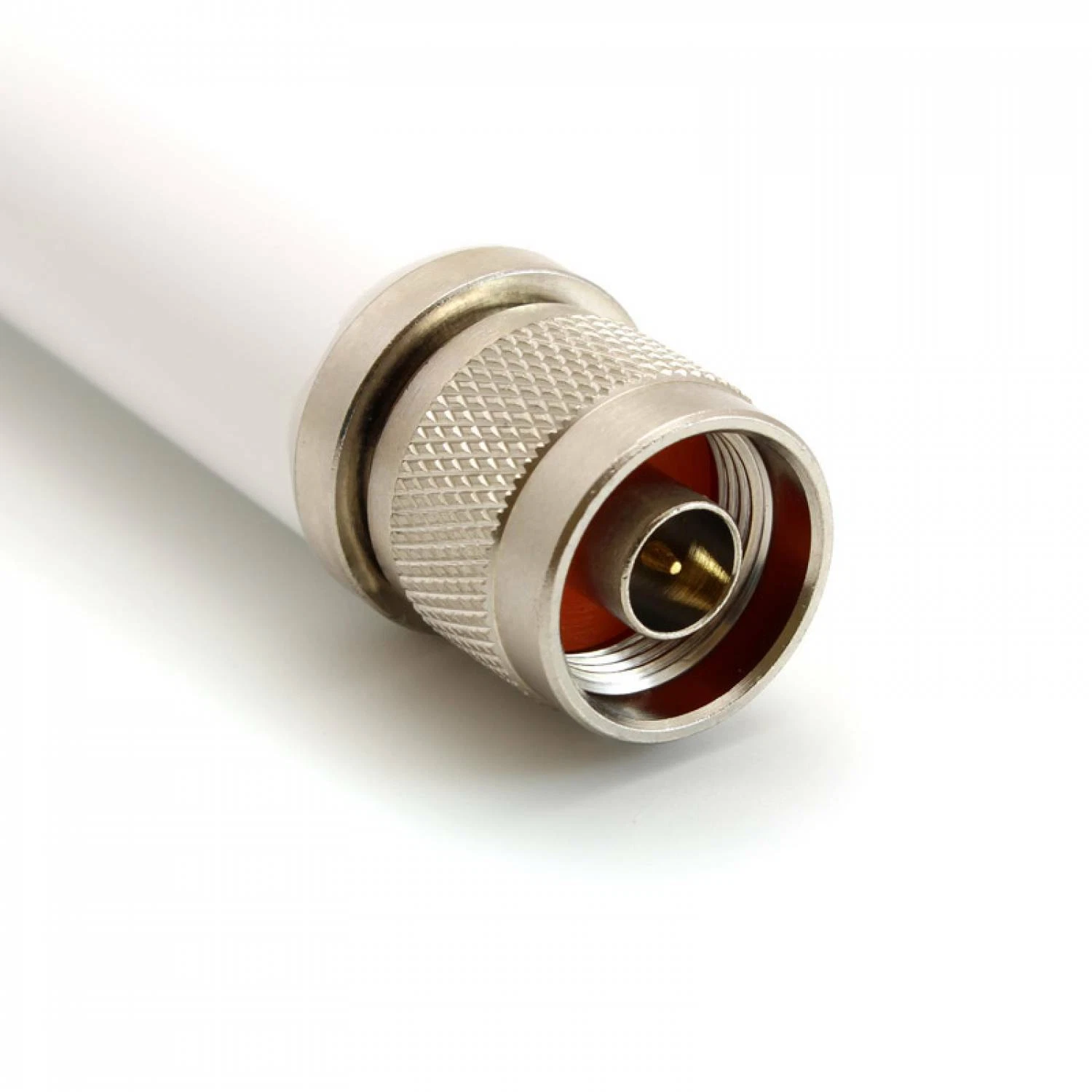

Connector:Â N-male
Height:Â 10.2 inches including connector (260mm)
